Aluminum Cable Clamp C Type Copper Wire Clip

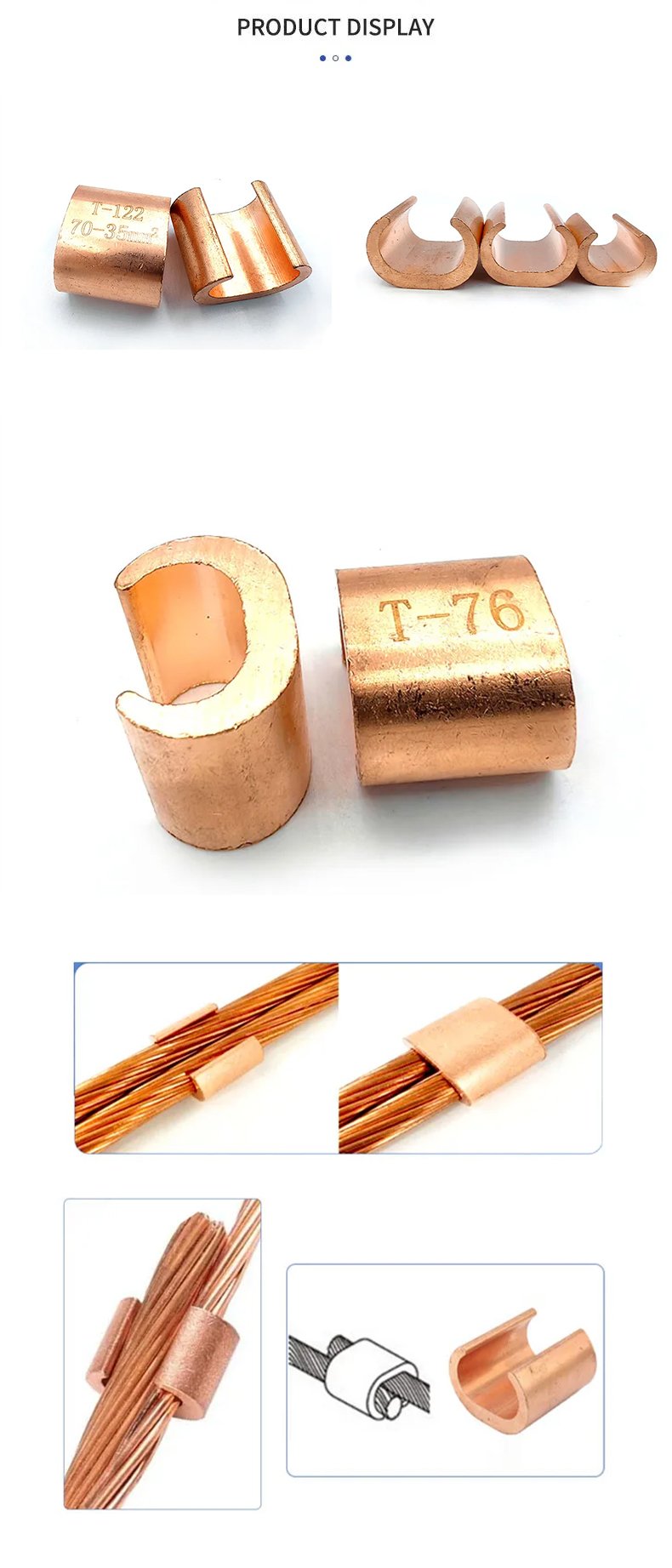

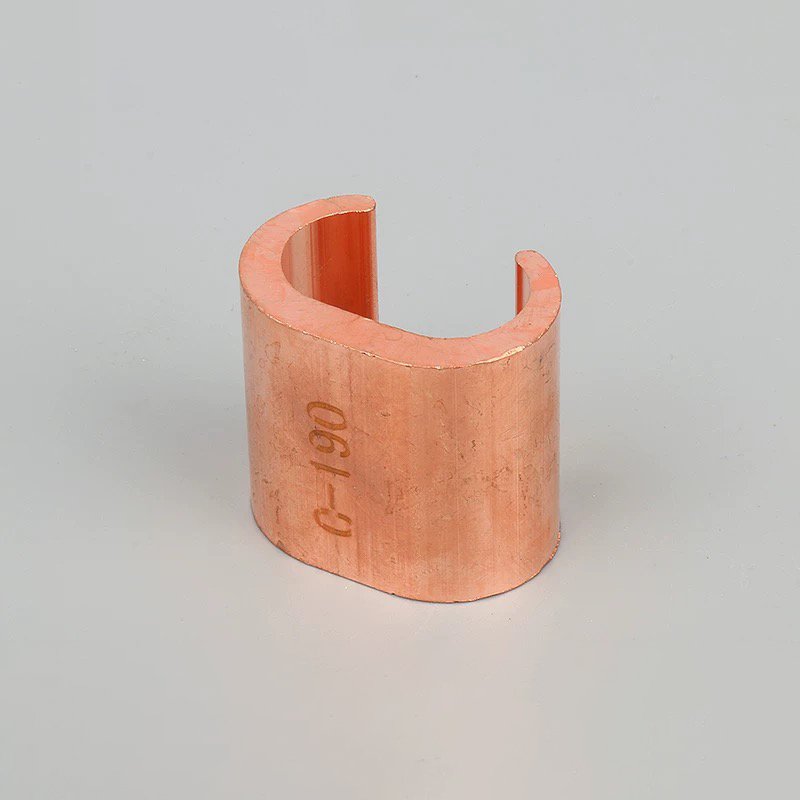

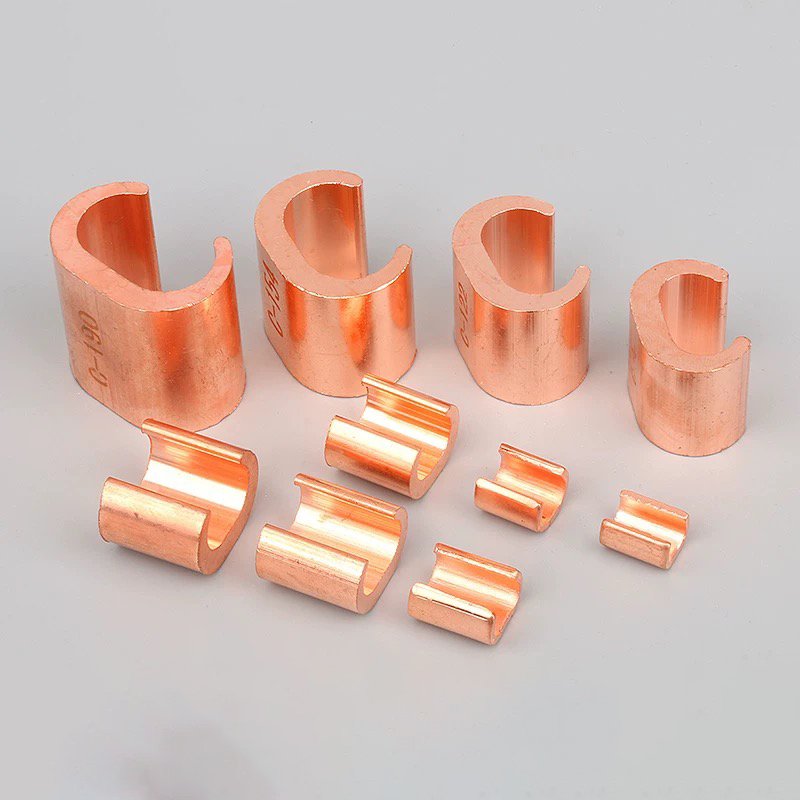

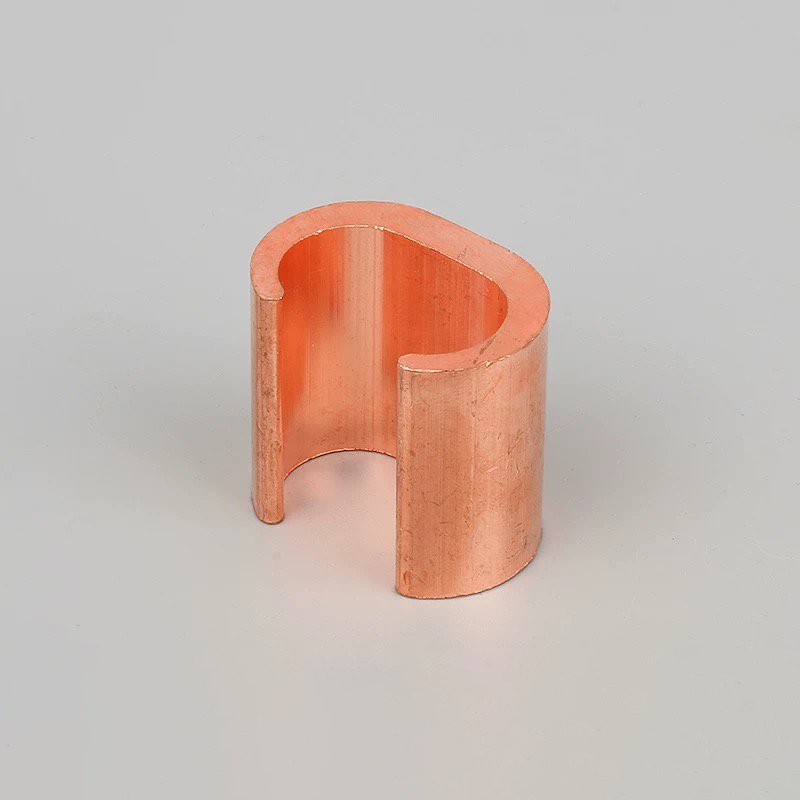

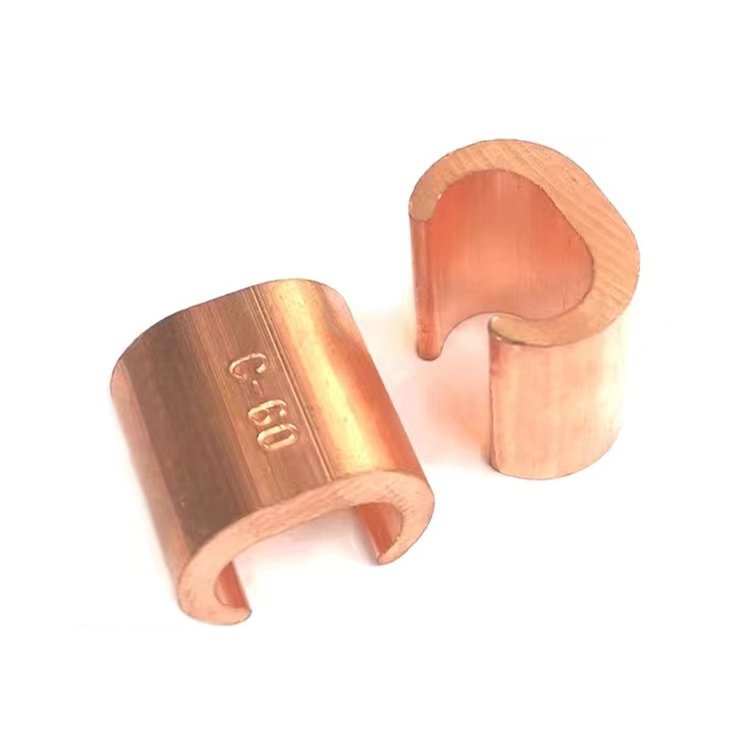

Copper pipe clamp C type /Electrical power line fitting copper wire clamp

Copper pipe clamp C type /Electrical power line fitting copper wire clamp is used for lightning protection of building,conductor of the fastening and connection of the net work , made of the copper material low resistivity is good electrical conductivity, good corrosion resistance and convenient installation, specialized production, the price is competitive.

Keywords:

Aluminium Cable Clamp
Aluminum Electric Clamp
Cable Clamp
Electric Dead End Clamp
Overhead Line Clamp
Power Cable Clamp
Wire Clamp

Item No.	Conductor(mm2)	Dimensions(mm)
Item No.	Conductor(mm2)	H	A	B	L	C	T
CCT-10	7.5-14	9.5	6.3	6.2	12	4	1.6
CCT-16	14.5-16	11.8	7.8	7.8	13	5	2
CCT-20	16.5-20	12.8	8.6	9.7	13	5.4	2.9
CCT-26	21-26	14.7	10.2	10	16	6.5	3.2
CCT-44	27-44	19	13.4	14.4	20	8.5	4
CCT-60	45-60	21	15.4	15.4	22	9.7	4
CCT-76	61-76	24.4	17.3	17.6	22	10.8	5
CCT-98	77-98	27.8	20.8	18.8	25	12.8	5
CCT-122	99-122	29.8	22.1	21.2	26	13.5	5.5
CCT-154	123-154	34	25.7	24.4	28	17	6
CCT-190	155-190	37	28.5	25.4	35	17.4	6
CCT-240	191-240	40	30.2	28.5	40	19	7
CCT-288	241-288	44.5	34.7	34.1	45	22.3	7
CCT-365	289-365	47.5	37.7	34	50	24.8	7
CCT-450	366-450	57	42.5	41	60	28	10
CCT-560	451-560	62	46	44	65	31	11
CCT-700	561-700	68	54	49.5	70	44	12
