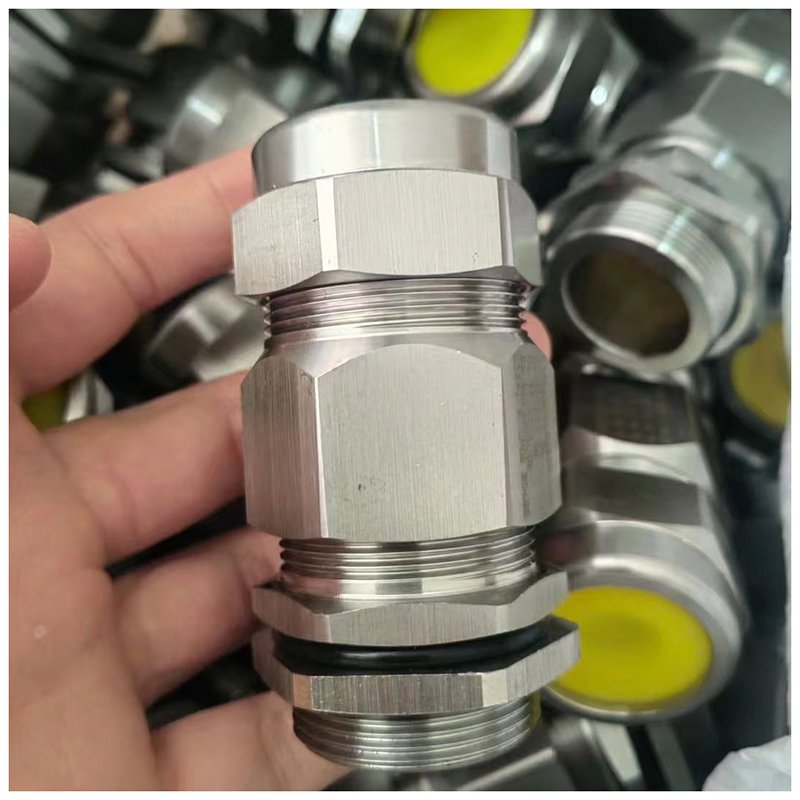

PRODUCT PARAMETERS
Material:SS304/316L/Nickel plated brass
Claw:PA66 (Nylon)
Hermetic:Silicon Rubber
O-Ring:Silicon Rubber
Thread size:M thread
Flame retardant degree:UL94-V0
Working temperature:Static -60 ℃ ~ +100 ℃ , short time
up to + 120 ℃ .
Protection Level:IP 66
Features:Enhanced flood control seal, crafted with
CNC precision tools, flameproof bushings and
internal and external drogues for superior protection,
ensuring quick installation and reliable armor.
safe and reliable armor.
Claw:PA66 (Nylon)
Hermetic:Silicon Rubber
O-Ring:Silicon Rubber
Thread size:M thread
Flame retardant degree:UL94-V0
Working temperature:Static -60 ℃ ~ +100 ℃ , short time
up to + 120 ℃ .
Protection Level:IP 66
Features:Enhanced flood control seal, crafted with
CNC precision tools, flameproof bushings and
internal and external drogues for superior protection,
ensuring quick installation and reliable armor.
safe and reliable armor.
|
Model
|
M thread
|
NPT thread
|
G thread
|
Cable outer diameter
|
GL (mm)
|
H(mm)
|
|
|
Outer line
|
Iner line
|
||||||
|
TOGLEX-EXII-M16
|
M16x1.5
|
—
|
—
|
5~8
|
7~15
|
15
|
71
|
|
TOGLEX-EXII-M20
|
M20x1.5
|
NPT1/2
|
G1/2
|
5~10
|
8~15
|
15
|
71
|
|
TOGLEX-EXII-M25
|
M25x1.5
|
NPT3/4
|
G3/4
|
8~15
|
11~20
|
15
|
72
|
|
TOGLEX-EXII-M32
|
M32x1.5
|
NPT1
|
G1
|
11~20
|
14~27
|
17
|
77
|
|
TOGLEX-EXII-M40
|
M40x1.5
|
NPT1-1/4
|
G1-1/4
|
14~27
|
19~33
|
19
|
86
|
|
TOGLEX-EXII-M50
|
M50x1.5
|
NPT1-1/2
|
G1-1/2
|
16~31
|
22~40
|
19
|
89
|
|
TOGLEX-EXII-M63
|
M63x1.5
|
NPT2
|
G2
|
29~43
|
29~50
|
20
|
97
|
|
TOGLEX-EXII-M75
|
M75x1.5
|
NPT2-1/2
|
G2-1/2
|
38~55
|
35~63
|
21
|
103
|
|
TOGLEX-EXII-M85
|
M85x1.5
|
NPT3S
|
G3S
|
48~65
|
41~77
|
24
|
106
|
|
TOGLEX-EXII-M90
|
M90x1.5
|
NPT3
|
G3
|
48~65
|
41~77
|
24
|
106
|
|
TOGLEX-EXII-M100
|
M100x1.5S
|
NPT4S
|
G4S
|
50~80
|
55~90
|
26
|
116
|
|
TOGLEX-EXII-M110
|
M110x1.5
|
NPT4
|
G4
|
48~90
|
61~104
|
26
|
116
|
|
TOGLEX-MCH-M75
|
M75x2
|
56~66
|
/
|
/
|
/
|
/
|
/
|
|
TOGLEX-MCH-M90
|
M90x2
|
66~77
|
/
|
/
|
/
|
/
|
/
|
