Product Parameter

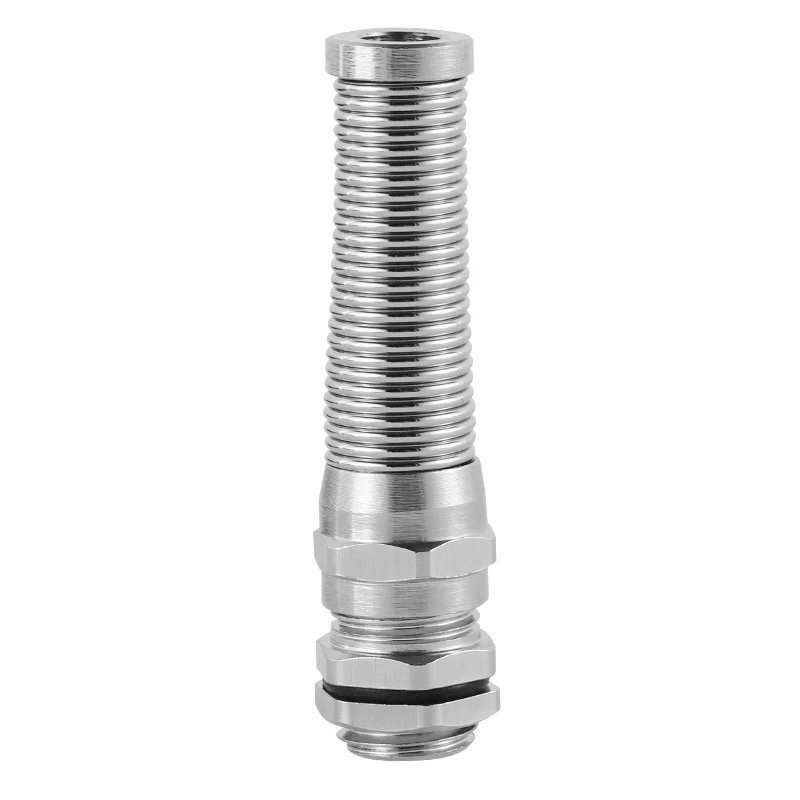

1. Item: Npt 3/4″ IP68 Wire Anti-Bending Cord Grip 304 Stainless Steel Strain Relief Metal Cable Gland
2. Material: Stainless Steel/Brass nickel plated/Nylon
3. Thread: M metric/PG/G/NPT
4. Seal& O-Ring:NBR/Silicone Rubber
5. Protection Degree: IP68
6.Temperature: from -40℃ to +100℃(120℃for short terms)
PRODUCT STRUCTURE
Sealing Nut, Claw, Seal, Body, O-Ring and Lock nut.
|
Model
|
Specification
|
Clamping Range(mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-AB-M12
|
M12x1.5
|
3~6.5
|
12
|
6.5
|
65
|
14
|
|
TOGLEX-AB-M16
|
M16x1.5
|
4~8
|
16
|
8
|
75
|
18
|
|
TOGLEX-AB-M18
|
M18x1.5
|
5~10
|
18
|
8
|
77
|
20
|
|
TOGLEX-AB-M20
|
M20x1.5
|
6~12
|
20
|
8
|
80
|
22
|
|
TOGLEX-AB-M22
|
M22x1.5
|
10~14
|
22
|
8
|
98
|
24
|
|
TOGLEX-AB-M25
|
M25x1.5
|
13~18
|
25
|
9
|
90
|
27
|
|
TOGLEX-AB-M30
|
M30x1.5
|
13~18
|
30
|
9
|
100
|
30
|
|
Model
|
Specification
|
Clamping Range(mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-AB-PG7
|
PG7
|
3~6.5
|
12.5
|
6.5
|
65
|
14/15
|
|
TOGLEX-AB-PG9
|
PG9
|
4~8
|
15.2
|
8
|
68
|
17/18
|
|
TOGLEX-AB-PG11
|
PG11
|
5~10
|
18.6
|
8
|
75
|
20/21
|
|
TOGLEX-AB-PG13.5
|
PG13.5
|
6~12
|
20.4
|
8
|
75
|
22/23
|
|
TOGLEX-AB-PG16
|
PG16
|
10~14
|
22.5
|
8
|
80
|
24/25
|
|
TOGLEX-AB-PG21
|
PG21
|
13~18
|
28.3
|
9
|
100
|
30
|
|
Note: According to customer installation requirements, thread length GL extension and thread customization can be provided
|
||||||
