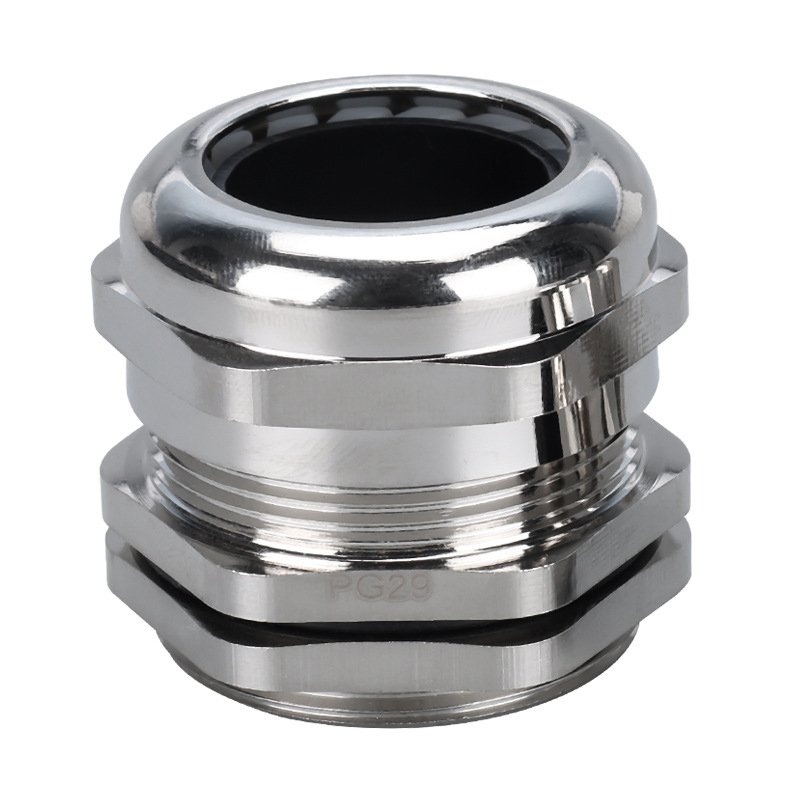

PRODUCT PARAMETERS
Material:SS304/316L
Claw:PA66 (Nylon)
Hermetic:NBR
O-Ring:NBR
Clamping core sleeve: A-type half-pass, B-type straight-through,
C-type silicone
Thread size:M thread, PG thread, G thread,NPT thread
Working temperature : Static -40 ℃ ~ +100 ℃ , short time can be
up to + 120 ℃ .Type C can reach -50° C~+250° C
Protection Level : IP68
Claw:PA66 (Nylon)
Hermetic:NBR
O-Ring:NBR
Clamping core sleeve: A-type half-pass, B-type straight-through,
C-type silicone
Thread size:M thread, PG thread, G thread,NPT thread
Working temperature : Static -40 ℃ ~ +100 ℃ , short time can be
up to + 120 ℃ .Type C can reach -50° C~+250° C
Protection Level : IP68
|
Model
|
Specification
|
Clamping Range (mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-P07
|
PG7
|
3~6.5
|
12.5
|
7
|
20
|
14
|
|
TOGLEX-P09
|
PG9
|
3~6.5
|
15.2
|
8
|
19
|
14/17
|
|
PG9
|
4~8
|
15.2
|
8
|
21
|
17
|
|
|
TOGLEX-P11
|
PG11
|
5~10
|
18.6
|
8
|
22.5
|
20
|
|
TOGLEX-P13.5
|
PG13.5
|
5~10
|
20. 4
|
8
|
23
|
20/22
|
|
PG13.5
|
6~12
|
20.4
|
8
|
23.5
|
22
|
|
|
TOGLEX-P16
|
PG16
|
6~12
|
22.5
|
8
|
23.5
|
22/24
|
|
PG16
|
10~14
|
22.5
|
8
|
23
|
24
|
|
|
TOGLEX-P21
|
PG21
|
10~16
|
28.3
|
8
|
24
|
28/30
|
|
PG21
|
13~18
|
28.3
|
8
|
26
|
30
|
|
|
TOGLEX-P25
|
PG25
|
13~18
|
32
|
9
|
26
|
30/36
|
|
PG25
|
15~22
|
32
|
9
|
28
|
36
|
|
|
TOGLEX-P29
|
PG29
|
15~22
|
37
|
9
|
28
|
36/40
|
|
PG29
|
18~25
|
37
|
9
|
33
|
40
|
|
|
TOGLEX-P36
|
PG36
|
25~33
|
47
|
10
|
38.5
|
50
|
|
TOGLEX-P42
|
PG42
|
30~38
|
54
|
11
|
40
|
58
|
|
TOGLEX-P48
|
PG48
|
37~44
|
59.3
|
11
|
41
|
65
|
|
TOGLEX-P63
|
PG63
|
42~52
|
72
|
11
|
44.5
|
77
|
