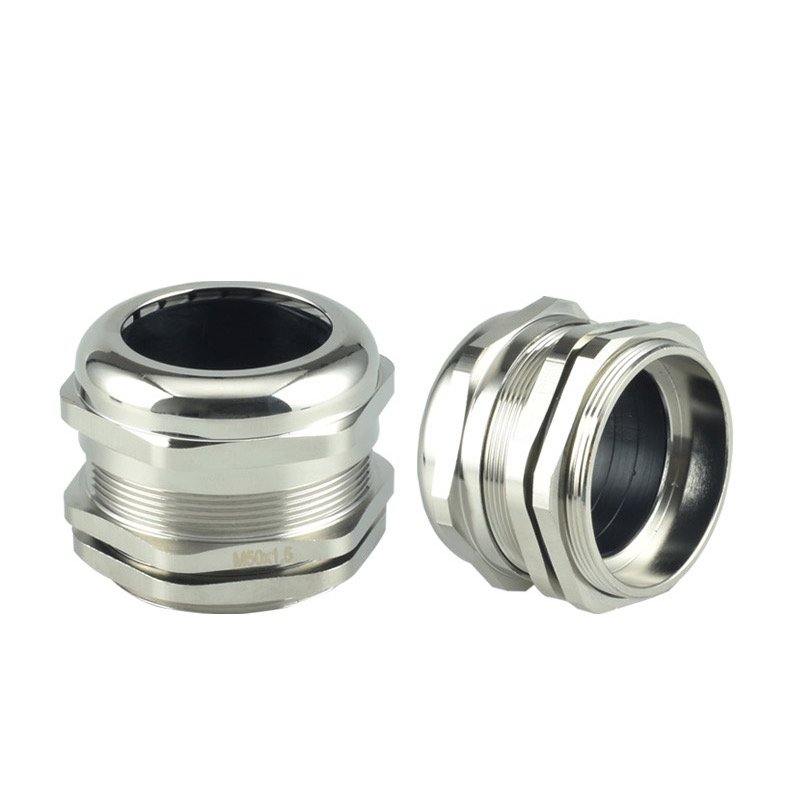

Material: Brass
Claw: PA6 (Nylon)
Hermetic: NBR
O-ring: NBR
Claw: PA6 (Nylon)
Hermetic: NBR
O-ring: NBR
Clamping core sleeve: A-type half-pass, B-type straight-through, C-type Silicone
Thread Size: M thread, PG thread, G thread, NPT thread
Working temperature:-40℃ to +100℃, short time can be up to +120℃, Type C can reach -50℃~+250℃
Working temperature:-40℃ to +100℃, short time can be up to +120℃, Type C can reach -50℃~+250℃
Protection Level: IP68
|
Model
|
Specification
|
Clamping Range(mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-M8
|
M8x1.0
|
2~5.5
|
8
|
5.5
|
15.5
|
12
|
|
TOGLEX-M10
|
M10x1.0
|
3~6
|
10
|
6
|
19
|
14
|
|
TOGLEX-M12
|
M12x1.5
|
3~6
|
12
|
6
|
19
|
14
|
|
TOGLEX-M14
|
M14x1.5
|
4~8
|
14
|
6
|
21
|
14/16
|
|
TOGLEX-M16
|
M16x1.5
|
4~8
|
16
|
7
|
21
|
17/18
|
|
M16x1.5
|
6~10
|
16
|
7
|
22.5
|
20
|
|
|
TOGLEX-M18
|
M18x1.5
|
6~10
|
18
|
7
|
22.5
|
20
|
|
TOGLEX-M20
|
M20x1.5
|
4~8
|
20
|
7
|
22.5
|
22
|
|
M20x1.5
|
6~12
|
20
|
7
|
23.5
|
22
|
|
|
M20x1.5
|
6~10
|
20
|
7
|
23.5
|
20/22
|
|
|
M20x1.5
|
10~14
|
20
|
7
|
23
|
24
|
|
|
TOGLEX-M22
|
M22x1.5
|
10~14
|
22
|
7
|
23
|
24
|
|
M22x1.5
|
10~16
|
22
|
7
|
24.5
|
28
|
|
|
TOGLEX-M24
|
M24x1.5
|
10~14
|
24
|
8
|
23
|
24/27
|
|
TOGLEX-M25
|
M25x1.5
|
10~14
|
25
|
8
|
23.5
|
24/27
|
|
M25x1.5
|
10~16
|
25
|
8
|
24
|
27/27
|
|
|
M25x1.5
|
13~18
|
25
|
8
|
26
|
30
|
|
|
TOGLEX-M27
|
M27x2.0
|
10~16
|
27
|
8
|
24.5
|
27/30
|
|
M27x2.0
|
13~18
|
27
|
8
|
26
|
30
|
|
|
TOGLEX-M30
|
M30x2.0
|
10~16
|
30
|
8
|
24.5
|
27/35
|
|
M30x2.0
|
13~18
|
30
|
8
|
26
|
30/35
|
|
|
M30x2.0
|
15~20
|
30
|
8
|
26
|
35
|
|
|
TOGLEX-M32
|
M32x1.5
|
13~18
|
32
|
8
|
26
|
30/35
|
|
M32x1.5
|
15~22
|
32
|
9
|
28
|
35
|
|
|
M32x1.5
|
18~25
|
32
|
9
|
33
|
40
|
|
|
TOGLEX-M33
|
M33x2.0
|
15~22
|
33
|
9
|
33
|
35
|
|
TOGLEX-M36
|
M36x2.0
|
15~22
|
36
|
9
|
28
|
36/40
|
|
M36x2.0
|
18~25
|
36
|
9
|
33
|
40
|
|
|
TOGLEX-M37
|
M37x2.0
|
18~25
|
37
|
9
|
33
|
40
|
|
TOGLEX-M40
|
M40x1.5
|
18~25
|
40
|
10
|
33
|
40/45
|
|
M40x1.5
|
22~30
|
40
|
10
|
35.5
|
45
|
|
|
M40x1.5
|
22~32
|
40
|
10
|
38.5
|
50
|
|
|
TOGLEX-M42
|
M42x2.0
|
22~28
|
42
|
10
|
38.5
|
45
|
|
M42x2.0
|
22~30
|
42
|
10
|
38.5
|
45
|
|
|
TOGLEX-M47
|
M47x2.0
|
25~32
|
47
|
10
|
38.5
|
50/52
|
|
Model
|
Specification
|
Clamping Range(mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-M48
|
M48x2.0
|
25~32
|
48
|
10
|
38.5
|
50/52
|
|
TOGLEX-M50
|
M50x2.0
|
25~32
|
50
|
10
|
38.5
|
50/52
|
|
M50x2.0
|
32~38
|
50
|
12
|
40
|
57
|
|
|
TOGLEX-M54
|
M54x2.0
|
32~38
|
54
|
12
|
40
|
57
|
|
TOGLEX-M56
|
M56x2.0
|
32~38
|
56
|
12
|
41.5
|
57
|
|
TOGLEX-M60
|
M60x2.0
|
32~32
|
60
|
12
|
41.5
|
57/64
|
|
M60x2.0
|
37~44
|
60
|
12
|
41.5
|
64
|
|
|
TOGLEX-M63
|
M63x2.0
|
37~44
|
63
|
12
|
41.5
|
64/68
|
|
TOGLEX-M64
|
M64x2.0
|
37~44
|
64
|
12
|
41.5
|
64/68
|
|
TOGLEX-M70
|
M70x2.0
|
42~52
|
70
|
15
|
44.5
|
80
|
|
TOGLEX-M71
|
M71x2.0
|
42~52
|
71
|
15
|
44.5
|
80
|
|
TOGLEX-M72
|
M72x2.0
|
42~52
|
72
|
15
|
57
|
86
|
|
TOGLEX-M80
|
M80x2.0
|
55~62
|
80
|
13
|
47
|
86
|
|
TOGLEX-M88
|
M88x2.0
|
65~70
|
88
|
18
|
45
|
94
|
|
TOGLEX-M90
|
M90x2.0
|
65~70
|
90
|
18
|
45
|
96
|
|
TOGLEX-M100
|
M100x2.0
|
75~85
|
100
|
20
|
53
|
110
|
|
TOGLEX-M120
|
M120x2.0
|
78~84
|
120
|
20
|
53
|
110/130
|
|
Model
|
Specification
|
Clamping Range(mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-P07
|
PG7
|
3~6
|
12.5
|
6
|
20
|
14
|
|
TOGLEX-P09
|
PG9
|
4~8
|
15.2
|
7
|
21
|
17
|
|
TOGLEX-P11
|
PG11
|
5~10
|
18.6
|
7
|
22.5
|
20
|
|
TOGLEX-P13.5
|
PG13.5
|
6~12
|
20.4
|
7
|
23.5
|
22
|
|
TOGLEX-P16
|
PG16
|
10~14
|
22.5
|
7
|
23
|
24
|
|
TOGLEX-P19
|
PG19
|
12~16
|
28.3
|
8
|
24
|
28/30
|
|
TOGLEX-P21
|
PG21
|
13~18
|
28.3
|
8
|
26
|
30
|
|
TOGLEX-P25
|
PG25
|
15~22
|
32
|
9
|
28
|
36
|
|
TOGLEX-P29
|
PG29
|
18~25
|
37
|
9
|
33
|
40
|
|
TOGLEX-P36
|
PG36
|
25~32
|
47
|
10
|
38.5
|
50
|
|
TOGLEX-P42
|
PG42
|
32~38
|
54
|
12
|
40
|
58
|
|
TOGLEX-P48
|
PG48
|
37~44
|
59.3
|
12
|
41
|
65
|
|
TOGLEX-P63
|
PG63
|
42~52
|
72
|
12
|
44.5
|
77
|
