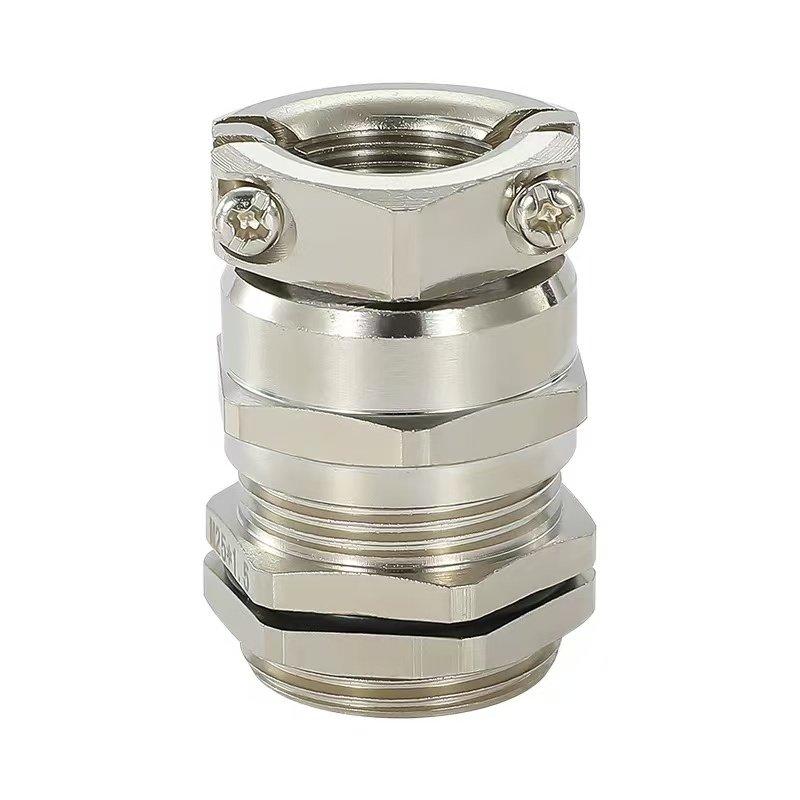

Material: SS304/316L
Claw: PA6 (Nylon)
Hermetic: NBR
O-ring: NBR
Claw: PA6 (Nylon)
Hermetic: NBR
O-ring: NBR
Clamping core sleeve: A-type half-pass, B-type straight, C-type Silicone
Thread Size: M, PG, G, NPT thread
Working temperature: -40℃ to +100℃, short-term up to +120℃, C-type -50℃~+250℃
Working temperature: -40℃ to +100℃, short-term up to +120℃, C-type -50℃~+250℃
Protection Level: IP68
|
Model
|
Specification
|
Clamping Range(mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-DL-M12
|
M12x1.5
|
3~6.5
|
12
|
8
|
26
|
14
|
|
TOGLEX-DL-M16
|
M16x1.5
|
4~8
|
16
|
8
|
30
|
17/18
|
|
TOGLEX-DL-M18
|
M18x1.5
|
5~10
|
18
|
9
|
30
|
20
|
|
TOGLEX-DL-M20
|
M20x1.5
|
6~12
|
20
|
9.5
|
30.5
|
22
|
|
TOGLEX-DL-M22
|
M22x1.5
|
10~14
|
22
|
9.5
|
30.5
|
24
|
|
TOGLEX-DL-M25
|
M25x1.5
|
9~16
|
25
|
12
|
30.5
|
27
|
|
M25x1.5
|
13~18
|
25
|
12
|
34.5
|
30
|
|
|
TOGLEX-DL-M27
|
M27x1.5
|
13~18
|
27
|
12
|
34.5
|
30
|
|
TOGLEX-DL-M28
|
M28x1.5(2)
|
13~18
|
28
|
12
|
34.5
|
30
|
|
TOGLEX-DL-M32
|
M32x1.5(2)
|
15~22
|
32
|
12
|
36
|
35
|
|
TOGLEX-DL-M37
|
M37x1.5(2)
|
18~25
|
37
|
12.5
|
43
|
40
|
|
TOGLEX-DL-M40
|
M40x1.5(2)
|
18~25
|
40
|
15
|
43
|
45
|
|
M40x1.5(2)
|
22~30
|
40
|
15
|
43
|
45
|
|
|
TOGLEX-DL-M47
|
M47x1.5(2)
|
25~32
|
47
|
15
|
48
|
50
|
|
TOGLEX-DL-M50
|
M50x1.5(2)
|
32~38
|
50
|
15
|
50
|
57
|
|
TOGLEX-DL-M54
|
M54x1.5(2)
|
32~38
|
54
|
15
|
50
|
57
|
|
TOGLEX-DL-M60
|
M60x1.5(2)
|
37~44
|
60
|
15
|
50
|
64/68
|
|
TOGLEX-DL-M63
|
M63x1.5(2)
|
37~44
|
63
|
15
|
50
|
64/68
|
|
Model
|
Specification
|
Clamping Range(mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-DL-PG7
|
PG7
|
3~6.5
|
12.5
|
8
|
26
|
14
|
|
TOGLEX-DL-PG9
|
PG9
|
4~8
|
15.2
|
8
|
30
|
17/18
|
|
TOGLEX-DL-PG11
|
PG11
|
5~10
|
18.6
|
9
|
30
|
20
|
|
TOGLEX-DL-PG13.5
|
PG13.5
|
6~12
|
20.4
|
9.5
|
30.5
|
22
|
|
TOGLEX-DL-PG16
|
PG16
|
10~14
|
22.5
|
9.5
|
30.5
|
24
|
|
TOGLEX-DL-PG19
|
PG19
|
9~16
|
25
|
12
|
30.5
|
27
|
|
TOGLEX-DL-PG21
|
PG21
|
13~18
|
28.3
|
12
|
34.5
|
30
|
|
TOGLEX-DL-PG25
|
PG25
|
15~22
|
32
|
12
|
36
|
35
|
|
TOGLEX-DL-PG29
|
PG29
|
18~25
|
37
|
12.5
|
43
|
40
|
|
TOGLEX-DL-PG36
|
PG36
|
25~32
|
47
|
15
|
48
|
50
|
|
TOGLEX-DL-PG42
|
PG42
|
32~38
|
54
|
15
|
50
|
57
|
|
TOGLEX-DL-PG48
|
PG48
|
37~44
|
59.3
|
15
|
50
|
64/68
|
|
Model
|
Specification
|
Clamping Range(mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-DL-NPT1/4
|
NPT1/4
|
3~6.5
|
13.16
|
8
|
26
|
14
|
|
TOGLEX-DL-NPT3/8
|
NPT3/8
|
4~8
|
16.67
|
8
|
30
|
17/18
|
|
TOGLEX-DL-NPT3/4
|
NPT3/4
|
13~18
|
26.45
|
12
|
34.5
|
30
|
|
TOGLEX-DL-NPT1
|
NPT1
|
18~25
|
33.25
|
12.5
|
43
|
40
|
|
TOGLEX-DL-NPT1 1/4
|
NPT1 1/4
|
25~32
|
41.9
|
15
|
48
|
50
|
|
TOGLEX-DL-NPT1 1/2
|
NPT1 1/2
|
32~38
|
47.8
|
15
|
50
|
57
|
|
TOGLEX-DL-NPT2
|
NPT2
|
37~44
|
59.6
|
15
|
50
|
64/68
|
|
Model
|
Specification
|
Clamping Range (mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-DL-G1/4
|
G1/4
|
3~6.5
|
13.16
|
8
|
26
|
14
|
|
TOGLEX-DL-G3/8
|
G3/8
|
4~8
|
16.67
|
8
|
30
|
17/18
|
|
TOGLEX-DL-G1/2
|
G1/2
|
6~12
|
20.96
|
9.5
|
30.5
|
22
|
|
TOGLEX-DL-G3/4
|
G3/4
|
13~18
|
26.45
|
12
|
34.5
|
30
|
|
TOGLEX-DL-G1
|
G1
|
18~25
|
33.25
|
12.5
|
43
|
40
|
|
TOGLEX-DL-G1 1/4
|
G1 1/4
|
25~32
|
41.9
|
15
|
48
|
50
|
|
TOGLEX-DL-G1 1/2
|
G1 1/2
|
32~38
|
47.8
|
15
|
50
|
57
|
|
TOGLEX-DL-G2
|
G2
|
37~44
|
59.6
|
15
|
50
|
64/68
|
