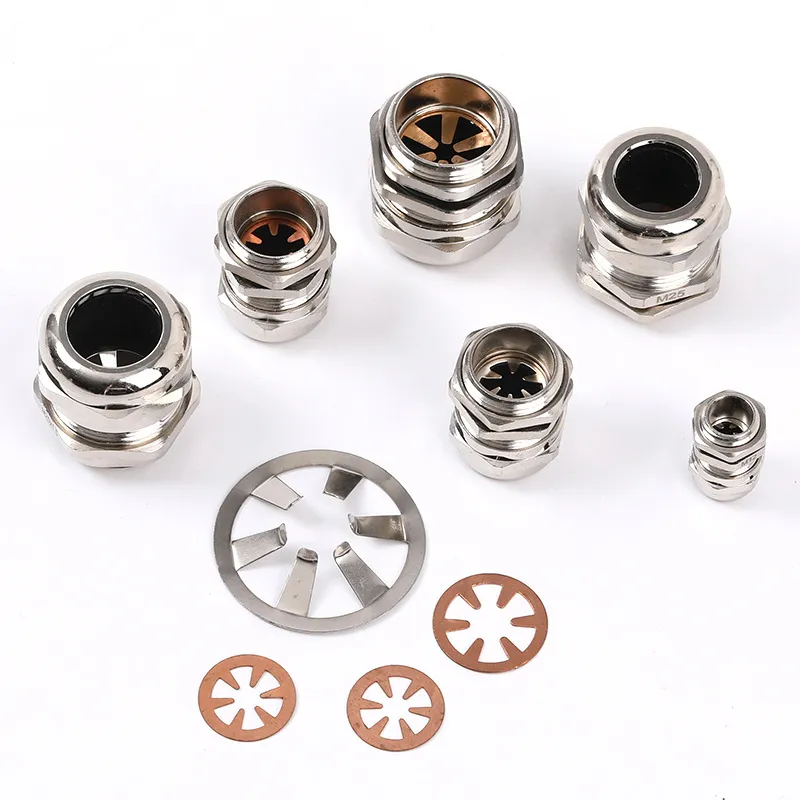

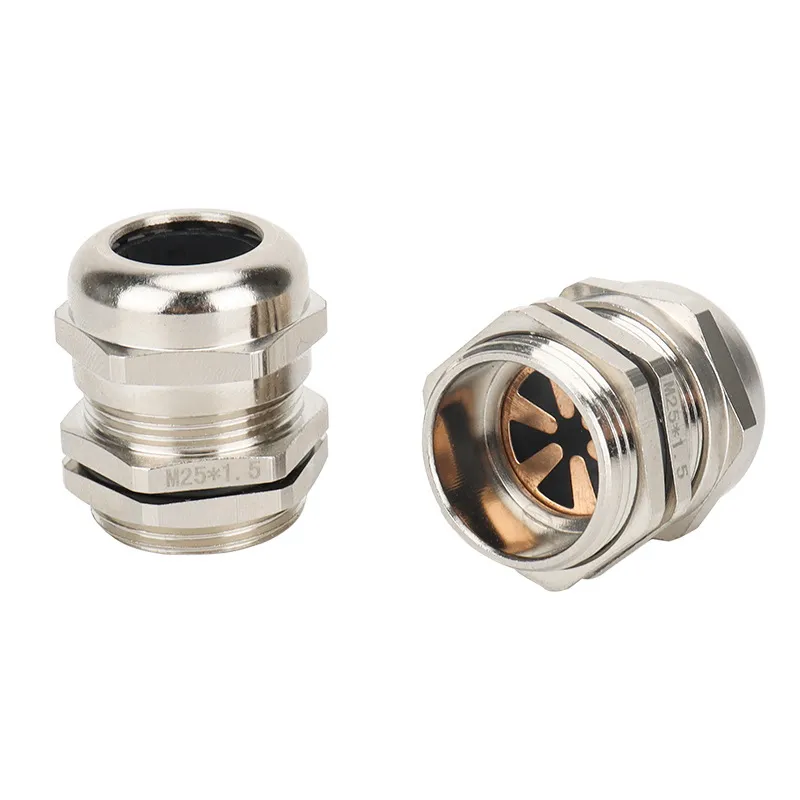

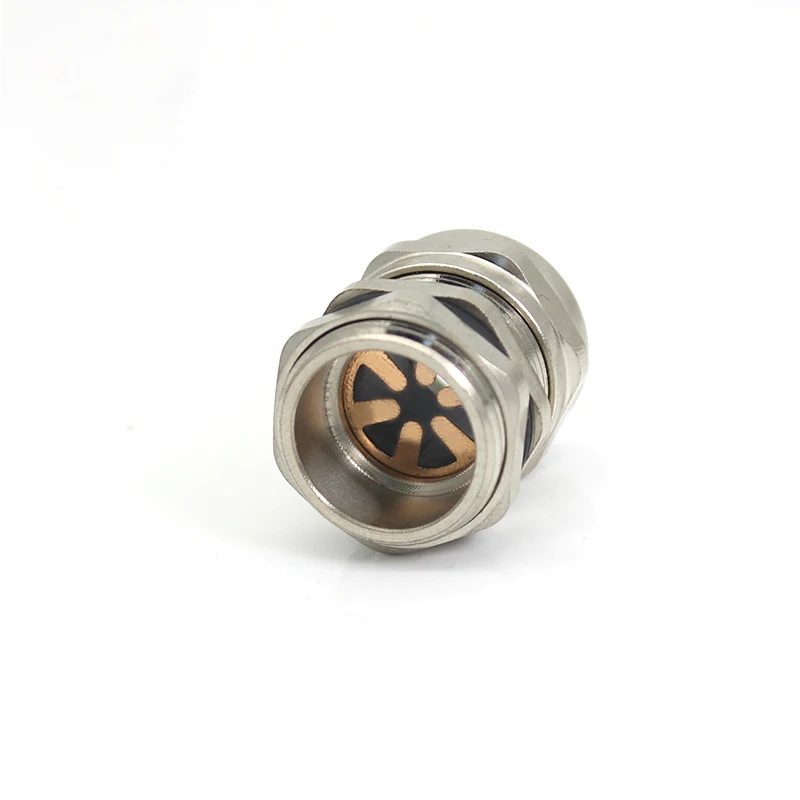

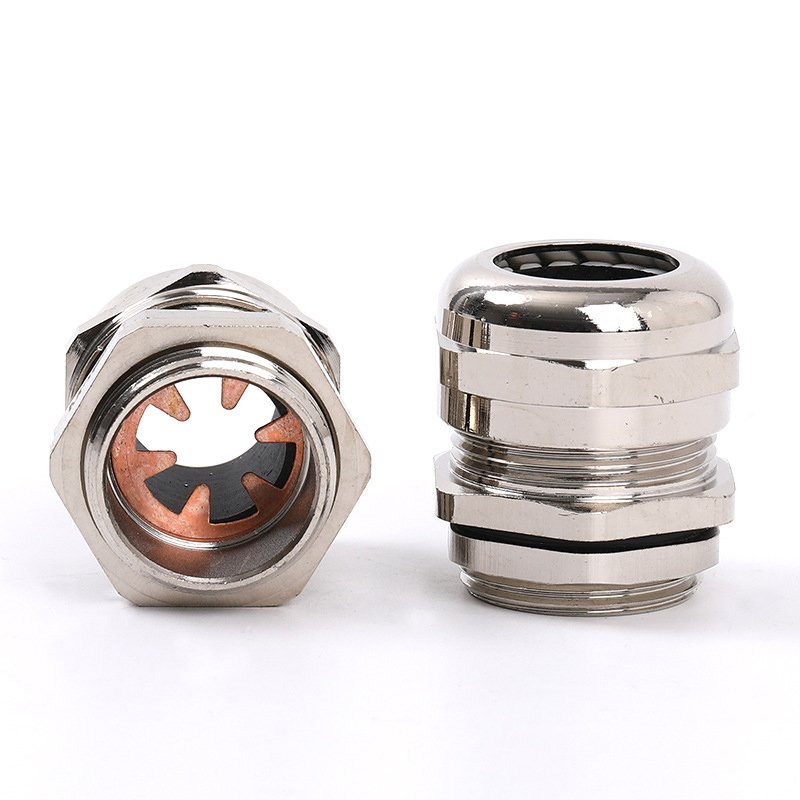

Material
|
Nickel plated brass
|
|

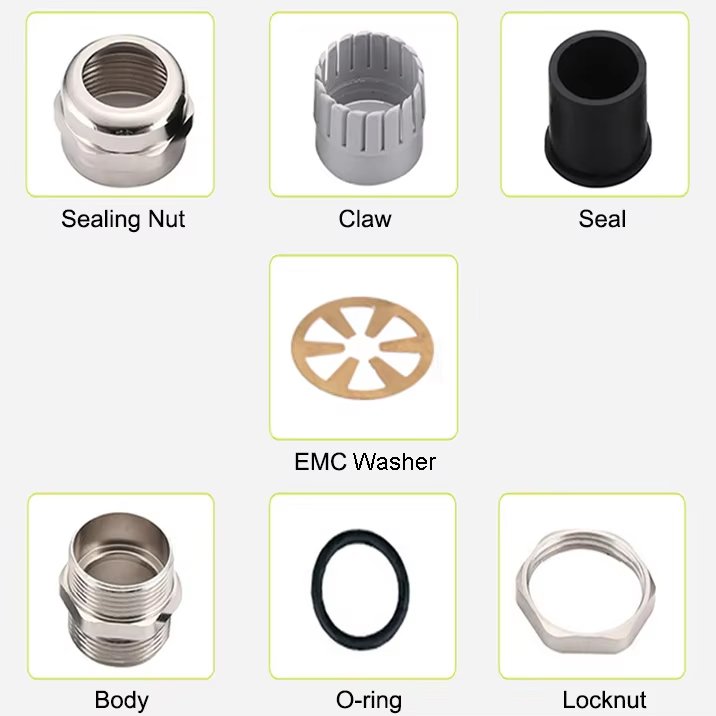

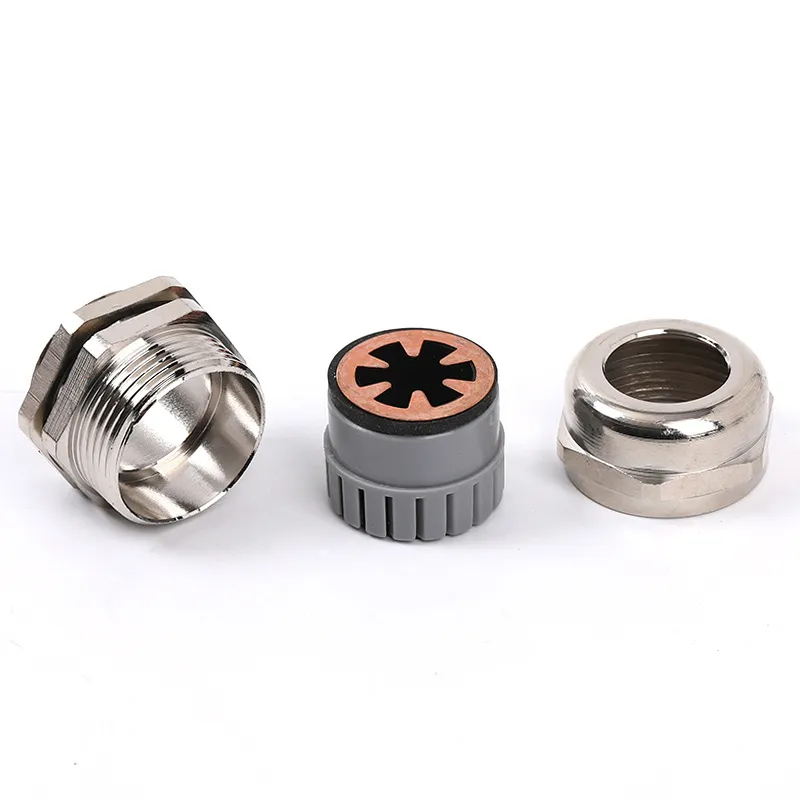

Seal
|
Nitrile rubber,silicone
|
|
Waterproof ring
|
Nitrile rubber, tetrauoride, silicone
|
|
Protection level
|
IP68
|
|
Operating temperature
|
-40C~+100℃, short time to 120°C
|
|
Screw thread type
|
M/G/PG/NPT
|
|
Applicable environment
|
Cable fastening and sealing, so that the cable does not produce axial displacement and radial rotation, sealed, dustproof and waterproof, up to IP68; Suitable for outdoor monitoring, distribution box, LED street lights and other cable lead-in devices.
|
EMC Brass Gland Size Chart
|
Metric Thread
|
PG Thread
|
G Thread
|
NPT Thread
|
Cable Range(mm)
|
Thread Length(mm)
|
|
M12x1.5
|
PG7
|
G1/4
|
NPT1/4
|
3-6.5
|
7
|
|
M14x1.5
|
|
|
|
4-8
|
7
|
|
M16x1.5
|
PG9
|
G3/8
|
NPT3/8
|
4-8
|
8
|
|
M18x1.5
|
PG11
|
|
|
5-10
|
8
|
|
M20x1.5
|
PG13.5
|
G1/2
|
NPT1/2
|
6-12
|
8
|
|
M22x1.5
|
PG16
|
|
|
10-14
|
8
|
|
M24x1.5
|
PG19
|
|
|
10-14
|
9
|
|
M25x1.5
|
PG21
|
G3/4
|
NPT3/4
|
13-18
|
9
|
|
M27x1.5
|
|
|
|
13-18
|
9
|
|
M28x1.5
|
|
|
|
13-18
|
9
|
|
M30x1.5
|
|
|
|
13-18
|
9
|
|
M32x1.5
|
PG25
|
|
|
15-22
|
10
|
|
M33x1.5
|
|
|
|
15-22
|
10
|
|
M36x1.5
|
PG29
|
G1
|
NPT1
|
18-25
|
10
|
|
M37x1.5
|
|
|
|
18-25
|
10
|
|
M40x1.5
|
|
|
|
22-30
|
11
|
|
M42x1.5
|
|
|
|
22-30
|
11
|
|
M47x1.5
|
PG36
|
G1 1/4
|
NPT1 1/4
|
25-33
|
11
|
|
M48x1.5
|
|
|
|
25-33
|
11
|
|
M50x1.5
|
PG42
|
G1 1/2
|
NPT1 1/2
|
32-38
|
12
|
|
M54x1.5
|
|
|
|
32-38
|
12
|
|
M56x1.5
|
|
|
|
32-38
|
12
|
|
M60x1.5
|
PG48
|
G2
|
NPT2
|
37-44
|
13
|
|
M63x1.5
|
|
|
|
37-44
|
13
|
|
M64x1.5
|
|
|
|
37-44
|
13
|
|
M72x2
|
PG63
|
G2 1/2
|
NPT2 1/2
|
42-52
|
15
|
|
M75x2
|
|
|
|
45-55
|
15
|
|
M80x2
|
|
|
|
50-62
|
18
|
|
M88x2
|
|
G3
|
NPT3
|
60-70
|
18
|
|
M100X2
|
|
|
|
70-80
|
20
|
|
M110x2
|
|
|
|
80-90
|
20
|
|
M120x2
|
|
|
|
90-102
|
20
|
|
M125x2
|
|
|
|
98-108
|
24
|
|
M150x2
|
|
|
|
110-125
|
25
|
