Product Description
In the world of electrical installations and industrial applications, ensuring the integrity and security of cable connections is paramount. One essential component that plays a crucial role in this process is the cable gland. Among the various types available, the metal double locking cable gland stands out for its robustness, durability, and superior performance.
What is A Double-Locking Metal Cable Gland?
A double-lock metal cable gland is a device used to securely attach and seal the end of an electrical cable to the equipment it is connected to. It ensures that the cable remains fixed in place and protected from external elements such as dust, moisture, and mechanical stress. The term “double locking” refers to the gland’s enhanced mechanism that provides an additional layer of security, preventing accidental disconnections and ensuring a tight seal.

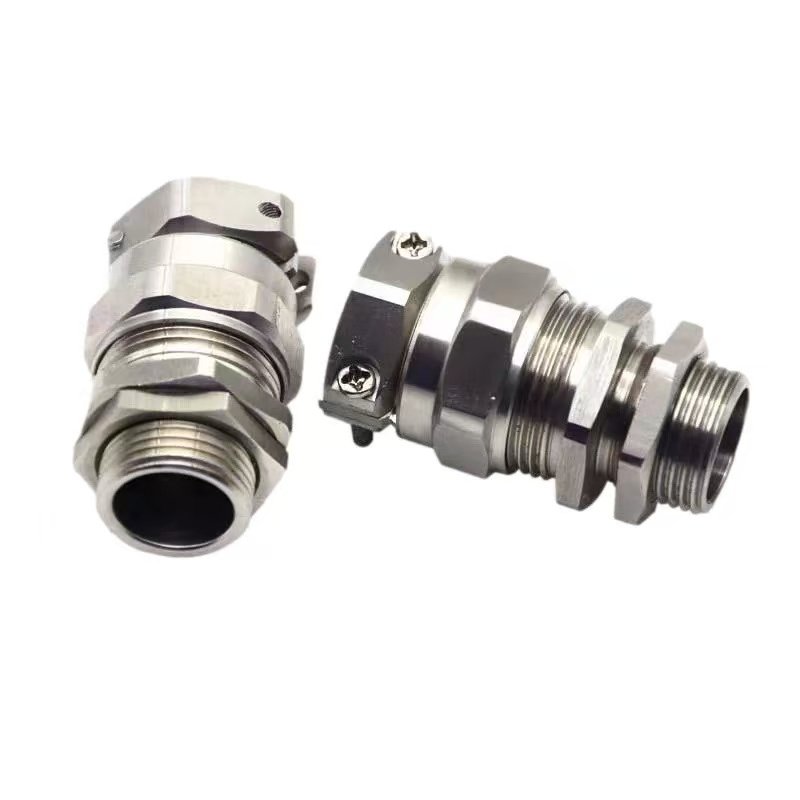

Tensile Double Lock Type Brass Cable Gland M12 – M63 For Cable Seal
Advantage:
1. High quality raw materials: waterproof, dustproof, salt resistant, acid and alkali resistant
2. The appearance is beautiful, the structure is close, the strength is high
3. Specifications are complete and the quality is superior
Product certification:
European CE certification, European ROHS certification, European REACH certification
1. Precision thread, tightly connected
2. Seal rubber ring, effective seal, strong waterproof
Product details:
1. Our thread specifications are metric thread, German thread, American thread and British thread.
2. The product material includes a nickel-plated brass (stainless steel) shell, nylon inner core, nitrile rubber and silicone rubber seal.
3. Within the specified limits, with the sealing ring to tighten the nut, the protection level can reach IP68.
4. The inner core unique clamping claw and sealing ring are mutually buckled and designed to tighten the nut to improve the tensile performance.
5. Our products can be waterproof, dustproof, salt resistant, acid and alkali resistant, alcohol, grease and other general solvents.
6., It can adapt to bad environments such as offshore operations, mine machinery and chemical equipment.
Application features:
High-end and practical design, it is widely used in shipbuilding, instrumentation, coal mine engineering and automation engineering. It can be called the excellent electrical product of locking and fixed cable.
Parameter:
|
Model
|
Specification
|
Clamping Range(mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-DL-M12
|
M12x1.5
|
3~6.5
|
12
|
8
|
26
|
14
|
|
TOGLEX-DL-M16
|
M16x1.5
|
4~8
|
16
|
8
|
30
|
17/18
|
|
TOGLEX-DL-M18
|
M18x1.5
|
5~10
|
18
|
9
|
30
|
20
|
|
TOGLEX-DL-M20
|
M20x1.5
|
6~12
|
20
|
9.5
|
30.5
|
22
|
|
TOGLEX-DL-M22
|
M22x1.5
|
10~14
|
22
|
9.5
|
30.5
|
24
|
|
TOGLEX-DL-M25
|
M25x1.5
|
9~16
|
25
|
12
|
30.5
|
27
|
|
M25x1.5
|
13~18
|
25
|
12
|
34.5
|
30
|
|
|
TOGLEX-DL-M27
|
M27x1.5
|
13~18
|
27
|
12
|
34.5
|
30
|
|
TOGLEX-DL-M28
|
M28x1.5(2)
|
13~18
|
28
|
12
|
34.5
|
30
|
|
TOGLEX-DL-M32
|
M32x1.5(2)
|
15~22
|
32
|
12
|
36
|
35
|
|
TOGLEX-DL-M37
|
M37x1.5(2)
|
18~25
|
37
|
12.5
|
43
|
40
|
|
TOGLEX-DL-M40
|
M40x1.5(2)
|
18~25
|
40
|
15
|
43
|
45
|
|
M40x1.5(2)
|
22~30
|
40
|
15
|
43
|
45
|
|
|
TOGLEX-DL-M47
|
M47x1.5(2)
|
25~32
|
47
|
15
|
48
|
50
|
|
TOGLEX-DL-M50
|
M50x1.5(2)
|
32~38
|
50
|
15
|
50
|
57
|
|
TOGLEX-DL-M54
|
M54x1.5(2)
|
32~38
|
54
|
15
|
50
|
57
|
|
TOGLEX-DL-M60
|
M60x1.5(2)
|
37~44
|
60
|
15
|
50
|
64/68
|
|
TOGLEX-DL-M63
|
M63x1.5(2)
|
37~44
|
63
|
15
|
50
|
64/68
|
|
Model
|
Specification
|
Clamping Range(mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-DL-PG7
|
PG7
|
3~6.5
|
12.5
|
8
|
26
|
14
|
|
TOGLEX-DL-PG9
|
PG9
|
4~8
|
15.2
|
8
|
30
|
17/18
|
|
TOGLEX-DL-PG11
|
PG11
|
5~10
|
18.6
|
9
|
30
|
20
|
|
TOGLEX-DL-PG13.5
|
PG13.5
|
6~12
|
20.4
|
9.5
|
30.5
|
22
|
|
TOGLEX-DL-PG16
|
PG16
|
10~14
|
22.5
|
9.5
|
30.5
|
24
|
|
TOGLEX-DL-PG19
|
PG19
|
9~16
|
25
|
12
|
30.5
|
27
|
|
TOGLEX-DL-PG21
|
PG21
|
13~18
|
28.3
|
12
|
34.5
|
30
|
|
TOGLEX-DL-PG25
|
PG25
|
15~22
|
32
|
12
|
36
|
35
|
|
TOGLEX-DL-PG29
|
PG29
|
18~25
|
37
|
12.5
|
43
|
40
|
|
TOGLEX-DL-PG36
|
PG36
|
25~32
|
47
|
15
|
48
|
50
|
|
TOGLEX-DL-PG42
|
PG42
|
32~38
|
54
|
15
|
50
|
57
|
|
TOGLEX-DL-PG48
|
PG48
|
37~44
|
59.3
|
15
|
50
|
64/68
|
|
Model
|
Specification
|
Clamping Range(mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-DL-NPT1/4
|
NPT1/4
|
3~6.5
|
13.16
|
8
|
26
|
14
|
|
TOGLEX-DL-NPT3/8
|
NPT3/8
|
4~8
|
16.67
|
8
|
30
|
17/18
|
|
TOGLEX-DL-NPT3/4
|
NPT3/4
|
13~18
|
26.45
|
12
|
34.5
|
30
|
|
TOGLEX-DL-NPT1
|
NPT1
|
18~25
|
33.25
|
12.5
|
43
|
40
|
|
TOGLEX-DL-NPT1 1/4
|
NPT1 1/4
|
25~32
|
41.9
|
15
|
48
|
50
|
|
TOGLEX-DL-NPT1 1/2
|
NPT1 1/2
|
32~38
|
47.8
|
15
|
50
|
57
|
|
TOGLEX-DL-NPT2
|
NPT2
|
37~44
|
59.6
|
15
|
50
|
64/68
|
|
Model
|
Specification
|
Clamping Range (mm)
|
AG (mm)
|
GL (mm)
|
H(mm)
|
Wrench Size (mm)
|
|
TOGLEX-DL-G1/4
|
G1/4
|
3~6.5
|
13.16
|
8
|
26
|
14
|
|
TOGLEX-DL-G3/8
|
G3/8
|
4~8
|
16.67
|
8
|
30
|
17/18
|
|
TOGLEX-DL-G1/2
|
G1/2
|
6~12
|
20.96
|
9.5
|
30.5
|
22
|
|
TOGLEX-DL-G3/4
|
G3/4
|
13~18
|
26.45
|
12
|
34.5
|
30
|
|
TOGLEX-DL-G1
|
G1
|
18~25
|
33.25
|
12.5
|
43
|
40
|
|
TOGLEX-DL-G1 1/4
|
G1 1/4
|
25~32
|
41.9
|
15
|
48
|
50
|
|
TOGLEX-DL-G1 1/2
|
G1 1/2
|
32~38
|
47.8
|
15
|
50
|
57
|
|
TOGLEX-DL-G2
|
G2
|
37~44
|
59.6
|
15
|
50
|
64/68
|
