Product Name
|
BS4568 Conduit Fitting Malleable Iron Junction Box Terminal Box
|
|
Material
|
Malleable Iron
|
|
Finish
|
Galvanised
|
|
Standard
|
BS EN61386
|
|
Thread
|
Metric
|
|
Size
|
20mm/25mm/32mm
|
|
Usage
|
Suit for BS4568 GI Conduit Cable Management System
|
| Item | Material | Size | Deep | Internal Diameter |

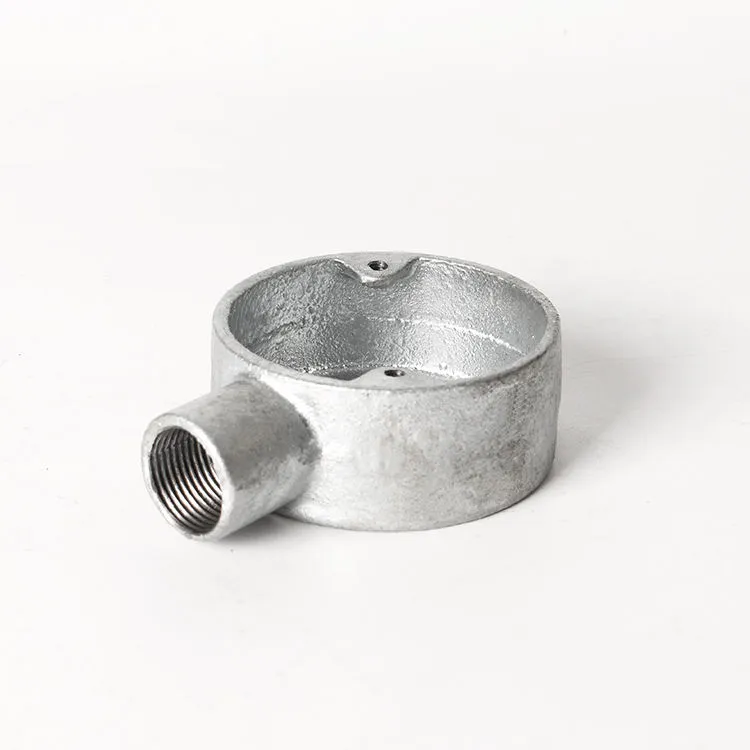

| Terminal Box – 1 Way | Malleable Iron | 20mm | 25mm | 60.3mm |
| Terminal Box – 1 Way | Malleable Iron | 25mm | 28mm | 60.3mm |
| Terminal Box – 1 Way | Malleable Iron | 32mm | 38mm | 81mm |

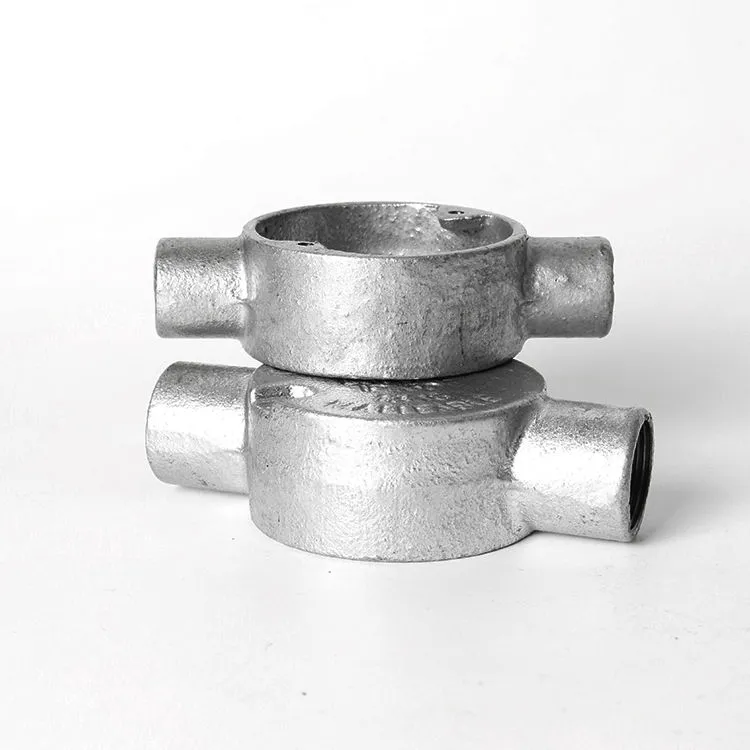

| Through Box – 2 Way | Malleable Iron | 20mm | 25mm | 60.3mm |
| Through Box – 2 Way | Malleable Iron | 25mm | 28mm | 60.3mm |
| Through Box – 2 Way | Malleable Iron | 32mm | 38mm | 81mm |

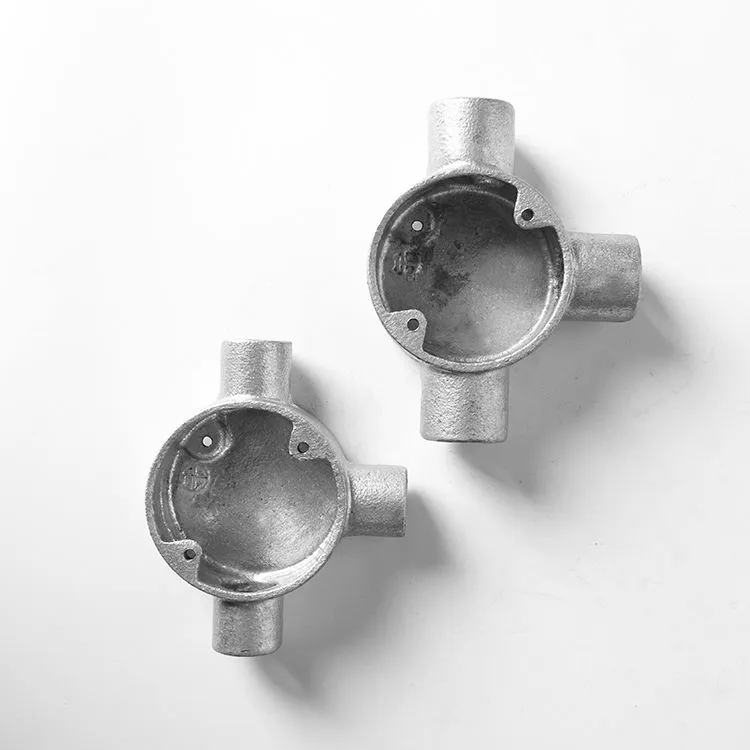

| Tee Box – 3 Ways | Malleable Iron | 20mm | 25mm | 60.3mm |
| Tee Box – 3 Ways | Malleable Iron | 25mm | 28mm | 60.3mm |
| Tee Box – 3 Ways | Malleable Iron | 32mm | 38mm | 81mm |

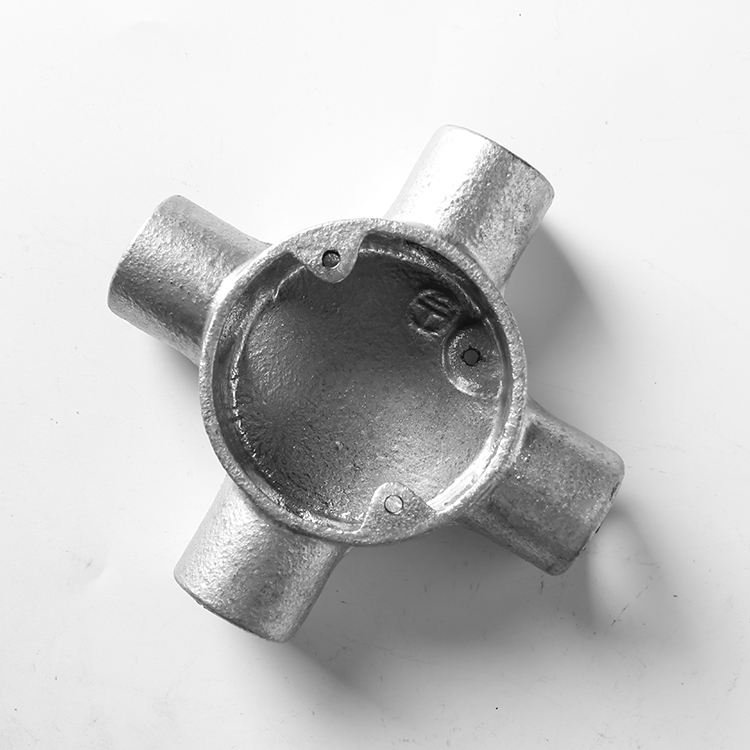

| Intersection Box – 4 Ways | Malleable Iron | 20mm | 25mm | 60.3mm |
| Intersection Box – 4 Ways | Malleable Iron | 25mm | 28mm | 60.3mm |
| Intersection Box- 4 Ways | Malleable Iron | 32mm | 38mm | 81mm |
Note:
1.With tapped hole in base for earthing screw.
2.Supplied with covers and fixing screws.
3.Order 3/4″ & 1″ when using with BS31 Conduits.
4.Order 20mm,25mm when using with BS4568 Conduits.
5.BS31 boxes also available in cast Iron & finish galvanized coating.
6.Box Covers are available 1.0/1.2mm thickness, finish Hot-Dipped Galvanized;

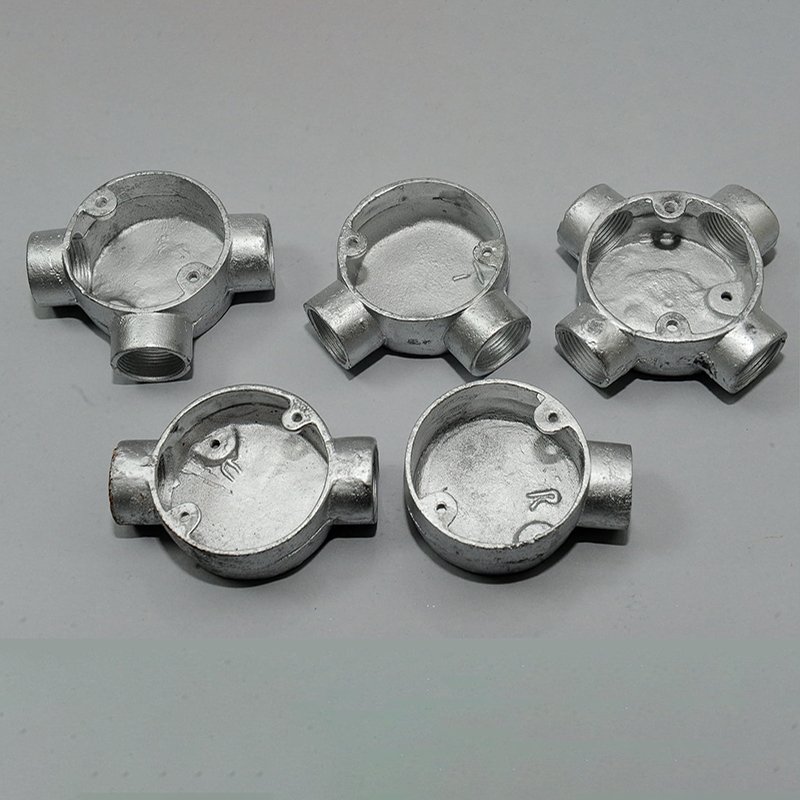

Other Junction Boxes:
One way box-terminal box. Two way Angle box, Two way Through box, Three way Tee box, four
way box-intersection box, Elbows, Intersection T box available
